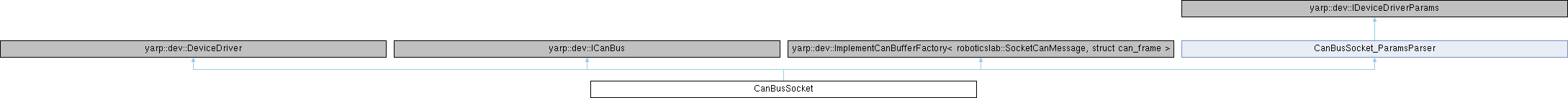

Inheritance diagram for CanBusSocket:

Public Member Functions
bool	open (yarp::os::Searchable &config) override

bool	close () override

bool	canSetBaudRate (unsigned int rate) override

bool	canGetBaudRate (unsigned int *rate) override

bool	canIdAdd (unsigned int id) override

bool	canIdDelete (unsigned int id) override

bool	canRead (yarp::dev::CanBuffer &msgs, unsigned int size, unsigned int *read, bool wait=false) override

bool	canWrite (const yarp::dev::CanBuffer &msgs, unsigned int size, unsigned int *sent, bool wait=false) override

Public Member Functions inherited from CanBusSocket_ParamsParser
bool	parseParams (const yarp::os::Searchable &config) override

std::string	getDeviceClassName () const override

std::string	getDeviceName () const override

std::string	getDocumentationOfDeviceParams () const override

std::vector< std::string >	getListOfParams () const override

Private Member Functions
bool	waitUntilTimeout (io_operation op, bool *bufferReady)

void	interpretErrorFrame (const struct can_frame *msg)

Additional Inherited Members
Public Attributes inherited from CanBusSocket_ParamsParser
const std::string	m_device_classname = {"CanBusSocket"}

const std::string	m_device_name = {"CanBusSocket"}

bool	m_parser_is_strict = false

const parser_version_type	m_parser_version = {}

const std::string	m_port_defaultValue = {"can0"}

const std::string	m_bitrate_defaultValue = {"0"}

const std::string	m_blockingMode_defaultValue = {"true"}

const std::string	m_allowPermissive_defaultValue = {"false"}

const std::string	m_rxTimeoutMs_defaultValue = {"1"}

const std::string	m_txTimeoutMs_defaultValue = {"0"}

const std::string	m_filterFunctionCodes_defaultValue = {"true"}

const std::string	m_filteredIds_defaultValue = {""}

std::string	m_port = {"can0"}

int	m_bitrate = {0}

bool	m_blockingMode = {true}

bool	m_allowPermissive = {false}

int	m_rxTimeoutMs = {1}

int	m_txTimeoutMs = {0}

bool	m_filterFunctionCodes = {true}

std::vector< int >	m_filteredIds = {}

The documentation for this class was generated from the following files:

Public Member Functions

Private Types
